 * bitOr - x|y using only ~ and &
 *   Example: bitOr(6, 5) = 7
 *   Legal ops: ~ &
 *   Max ops: 8
 *   Rating: 1
 */
int bitOr(int x, int y) {
  return ~(~x & ~y);
}

/*
 * upperBits - pads n upper bits with 1's
 *  You may assume 0 <= n <= 32
 *  Example: upperBits(4) = 0xF0000000
 *  Legal ops: ! ~ & ^ | + << >>
 *  Max ops: 10
 *  Rating: 1
 */
int upperBits(int n) {
  int iszero = !n;
  int flag = ~iszero + 1;
  return (~flag & (1 << 31) >> (n + (~1)+1)); // | (flag & 0);
}

/*
 * fullAdd - 4-bits add using bit-wise operations only.
 *   (0 <= x, y < 16)
 *   Example: fullAdd(12, 7) = 3,
 *            fullAdd(7, 8) = 15,
 *   Legal ops: ~ | ^ & << >>
 *   Max ops: 30
 *   Rating: 2
 */
int fullAdd(int x, int y) {
  // 位运算作用在两个整数之间，实际上对单个位的操作是不会影响到其余位的，
  // 每个位取异或是加法之后的值，而取and是是否要进位，进位带到高位，
  // 所以把整体and，然后左移一位，异或，就是完成了加法操作，
  // 但是又有可能进位之后还要进位，最多操作四次（取整体and），那就暴力完成
  int base1 = x ^ y, up1 = (x & y) << 1;
  int base2 = base1 ^ up1, up2 = (base1 & up1) << 1;
  int base3 = base2 ^ up2, up3 = (base2 & up2) << 1;
  int base4 = base3 ^ up3; //up4 无所谓，反正只要最后4位
  int masklo4 = ~((1 << 31) >> 27);
  return base4 & masklo4;
}

/*
 * rotateLeft - Rotate x to the left by n
 *   Can assume that 0 <= n <= 31
 *   Examples: rotateLeft(0x87654321,4) = 0x76543218
 *   Legal ops: ~ & ^ | + << >> !
 *   Max ops: 25
 *   Rating: 3
 */
int rotateLeft(int x, int n) {
  // 把高位n字节移到低位n字节，需要右移字节数shift2lo=32-n，
  // 右移后需要消除高shift2lo符号位的影响，构造00..011，也就是11..100再取反,
  // 其中前面有shift2lo个1，对1<<31右移(shift2lo-1)位
  int shift2lo = 32 + (~n+1);
  int mask_for_shift = ~((1 << 31) >> (shift2lo + ~1+1));
  int hi2lo = (x >> shift2lo) & mask_for_shift;
  int lo2hi = x << n;
  return lo2hi | hi2lo;
}

/*
 * bitParity - returns 1 if x contains an odd number of 0's
 *   Examples: bitParity(5) = 0, bitParity(7) = 1
 *   Legal ops: ! ~ & ^ | + << >>
 *   Max ops: 20
 *   Rating: 4
 */
int bitParity(int x) {
  // 0 = 0, 1=1, 2=1, 3=2, 4=1, 5=2, 6=2, 7=3, 8=1, 9=2,
  // 0x0000 0101  0x0101  0x00 0x0
  // 0x0000 0111  0x0111  0x10 0x1
  // 0x1001 0111  0x1110  0x01 0x1
  int x1 = (x >> 16) ^ x;
  int x2 = (x1 >> 8) ^ x1;
  int x3 = (x2 >> 4) ^ x2;
  int x4 = (x3 >> 2) ^ x3;
  int x5 = (x4 >> 1) ^ x4;
  int ans = x5 & 1;
  return ans;
}

/*
 * palindrome - return 1 if x is palindrome in binary form,
 *   return 0 otherwise
 *   A number is palindrome if it is the same when reversed
 *   YOU MAY USE BIG CONST IN THIS PROBLEM, LIKE 0xFFFF0000
 *   YOU MAY USE BIG CONST IN THIS PROBLEM, LIKE 0xFFFF0000
 *   YOU MAY USE BIG CONST IN THIS PROBLEM, LIKE 0xFFFF0000
 *   Example: palindrome(0xff0000ff) = 1,
 *            palindrome(0xff00ff00) = 0
 *   Legal ops: ~ ! | ^ & << >> +
 *   Max ops: 40
 *   Rating: 4
 */
int palindrome(int x) {
  // 考虑把x反转然后异或，反转操作：
  // 不断二分并互换，第一步是归并排序的划分操作，每次划分都把相邻左右互换位置
  // 不要用掩码逐个提取，采用类似于4位加法的方式，整体取出
  int maskhi16 = 0xffff0000, masklo16 = 0xffff0000;
  int hi16lo = ((x & maskhi16) >> 16) & masklo16;
  int lo16hi = x << 16;
  int trans16 = lo16hi | hi16lo;

  int maskhi8 = 0xff00ff00, masklo8 = 0x00ff00ff;
  int hi8lo = ((trans16 & maskhi8) >> 8) & masklo8;
  int lo8hi = (trans16 & masklo8) << 8;
  int trans8 = hi8lo | lo8hi;

  int maskhi4 = 0xf0f0f0f0, masklo4 = 0x0f0f0f0f;
  int hi4lo = ((trans8 & maskhi4) >> 4) & masklo4;
  int lo4hi = (trans8 & masklo4) << 4;
  int trans4 = hi4lo | lo4hi;

  int maskhi2 = 0xcccccccc, masklo2 = 0x33333333;
  int hi2lo = ((trans4 & maskhi2) >> 2) & masklo2;
  int lo2hi = (trans4 & masklo2) << 2;
  int trans2 = hi2lo | lo2hi;

  int maskhi1 = 0xaaaaaaaa, masklo1 = 0x55555555;
  int hi1lo = ((trans2 & maskhi1) >> 1) & masklo1;
  int lo1hi = (trans2 & masklo1) << 1;
  int trans1 = hi1lo | lo1hi;

  int iseq = !(trans1 ^ x);
  return iseq;
}

/*
 * negate - return -x
 *   Example: negate(1) = -1.
 *   Legal ops: ! ~ & ^ | + << >>
 *   Max ops: 5
 *   Rating: 2
 */
int negate(int x) {
  return ~x+1;
}

/*
 * oneMoreThan - return 1 if y is one more than x, and 0 otherwise
 *   Examples oneMoreThan(0, 1) = 1, oneMoreThan(-1, 1) = 0
 *   Legal ops: ~ & ! ^ | + << >>
 *   Max ops: 15
 *   Rating: 2
 */
int oneMoreThan(int x, int y) {
  // y = x + 1, x+1+(~y+1)==0
  // 如果x正，y负，则必为0 -> diff=1 flag=0xffffffff

  int sx = (x >> 31) & 1;
  int sy = (y >> 31) & 1;
  int diff = (sx ^ 1) & (sx ^ sy);

  int flag = diff;
  int ans = x + 1 + (~y+1);
  return !(flag | ans);
  // return (!flag & !ans);
}

/*
 * ezThreeFourths - multiplies by 3/4 rounding toward 0,
 *   Should exactly duplicate effect of C expression (x*3/4),
 *   including overflow behavior.
 *   Examples: ezThreeFourths(11) = 8
 *             ezThreeFourths(-9) = -6
 *             ezThreeFourths(1073741824) = -268435456 (overflow)
 *   Legal ops: ! ~ & ^ | + << >>
 *   Max ops: 12
 *   Rating: 3
 */
int ezThreeFourths(int x) {
  int mul = (x << 1) + x;
  int bias = 3;
  int sign = (mul >> 31);
  return (mul + ((sign & bias))) >> 2;
  // return (mul<0 ? mul+3 : mul) >> 2;
}

/*
 * isLess - if x < y  then return 1, else return 0
 *   Example: isLess(4,5) = 1.
 *   Legal ops: ! ~ & ^ | + << >>
 *   Max ops: 24
 *   Rating: 3
 */
int isLess(int x, int y) {
  // x<y - x-y<0 - x+~y+1<0
  // x正y负 必为0； x负y正 必为1；即符号不同答案就是x的符号位
  int sx = (x >> 31);
  int sy = (y >> 31);
  int diff = sx ^ sy;
  int flag = diff;
  int ans = x + (~y+1);
  return ((~flag & (ans >> 31)) | (flag & sx)) & 1;
}

/*
 * satMul2 - multiplies by 2, saturating to Tmin or Tmax if overflow
 *   Examples: satMul2(0x30000000) = 0x60000000
 *             satMul2(0x40000000) = 0x7FFFFFFF (saturate to TMax)
 *             satMul2(0x90000000) = 0x80000000 (saturate to TMin)
 *   Legal ops: ! ~ & ^ | + << >>
 *   Max ops: 20
 *   Rating: 3
 */
int satMul2(int x) {
  // 当符号位发生变化时，发生溢出
  int tmin = 1 << 31;
  int tmax = ~tmin;

  int x2 = x + x;
  int sx0 = x >> 31;
  // int sx = sx0 & 1;
  int sx2 = x2 >> 31;
  int diff = sx0 ^ sx2;
  int flag = diff;

  int sat_val = (sx0 & tmin) | (~sx0 & tmax);
  return (~flag & x2) | (flag & sat_val);
}

/*
 * modThree - calculate x mod 3 without using %.
 *   Example: modThree(12) = 0,
 *            modThree(2147483647) = 1,
 *            modThree(-8) = -2,
 *   Legal ops: ~ ! | ^ & << >> +
 *   Max ops: 60
 *   Rating: 4
 */

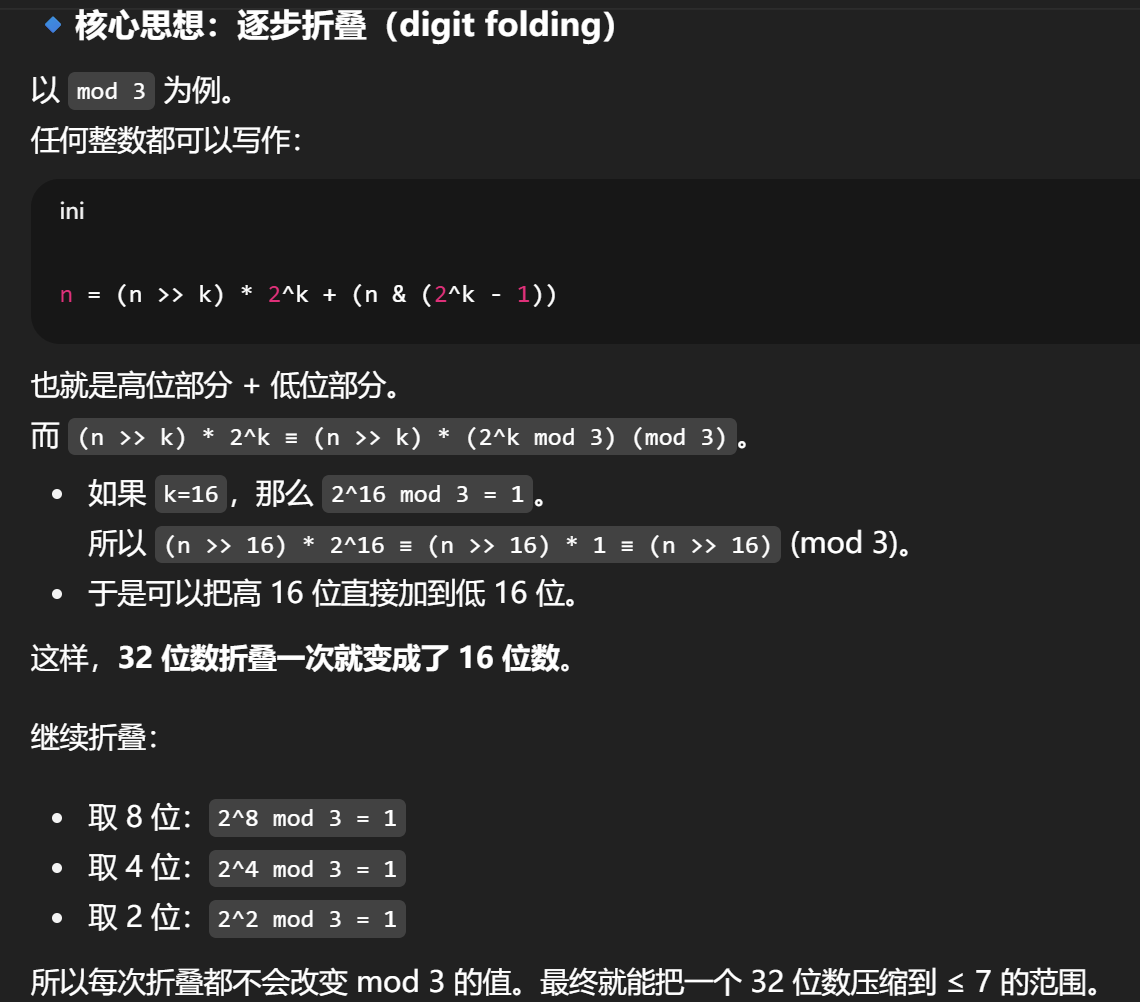

int modThree(int x) {
  int is_3, should_eq_0, flag_for_tmin, flag_for_zero, reverse, for_zero, for_tmin;
  int sign = x >> 31;
  int y = (sign & (~x+1)) | (~sign & x);
  int tmin = 1 << 31;
  int is_tmin = !(x ^ tmin);
  int ans_minus3 = ~3+1;
  int ans_minus2 = ans_minus3 + 1;
  // if (x == (1<<31)) return -2;

  int mask = ~(tmin >> 15); // 0xffff
  y = (y >> 16) + (y & mask);
  y = (y >> 16) + (y & mask);
  y = (y >> 8) + (y & 0xff);
  y = (y >> 8) + (y & 0xff);
  y = (y >> 4) + (y & 0xf);
  y = (y >> 4) + (y & 0xf);
  y = (y >> 2) + (y & 0x3);
  y = (y >> 2) + (y & 0x3);

  is_3 = !(y ^ 3);
  should_eq_0 = is_3;
  // if (y==3 || y==-3) y=0;
  flag_for_tmin = ~is_tmin + 1;
  flag_for_zero = ~should_eq_0 + 1;

  reverse = (sign & (~y + 1)) | (~sign & y);
  for_zero = ((~flag_for_zero & reverse));
  for_tmin = (flag_for_tmin & ans_minus2) | (~flag_for_tmin & for_zero);
  return for_tmin;
}

/*
 * float_half - Return bit-level equivalent of expression 0.5*f for
 *   floating point argument f.
 *   Both the argument and result are passed as unsigned int's, but
 *   they are to be interpreted as the bit-level representation of
 *   single-precision floating point values.
 *   When argument is NaN, return argument
 *   Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
 *   Max ops: 30
 *   Rating: 4
 */
unsigned float_half(unsigned uf) {
  int sign = uf & (1 << 31);
  int exp = (uf >> 23) & 0xff;
  int frac = uf & (0x7fffff);

  if (exp == 0xff) return uf;
  if (exp == 0) {
    frac = (frac >> 1) + ((frac & 3) == 3);
    return sign | frac;
  }
  if (exp == 1) {
    frac = ((frac >> 1) | (1 << 22)) + ((frac & 3) == 3);
    return sign | frac;
  }
  return sign | (exp - 1) << 23 | frac;

  // *******  另外一种思路  *******
  // if (exp <= 1) {
  //   // 把exp=1的情况归纳到非规格，直接向右移位，把隐含的1移到尾数中，相当于除以2，而指数部分是不变的
  //   // 涉及到舍入的问题，向偶数，如果最后两位是11需要向上舍入，如果是01需要向下舍入
  //   if ((frac & 3) == 3) {
  //     uf = (no_sign >> 1) + 1;
  //   } else {
  //     uf = (no_sign >> 1);
  //   }
  //   return uf | sign;
  // }
  // exp--;
  // return sign | (exp << 23) | frac;
}

/*
 * float_i2f - Return bit-level equivalent of expression (float) x
 *   Result is returned as unsigned int, but
 *   it is to be interpreted as the bit-level representation of a
 *   single-precision floating point values.
 *   Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
 *   Max ops: 30
 *   Rating: 4
 */
unsigned float_i2f(int x) {
  // 特殊判断，如果x=0、tmin直接返回，因为找不到除了符号位之外的1
  int tmin = 1 << 31;
  int sign, first1 = 0, frac, frac_mask, exp, out, idx;
  if (x == 0) { return 0; }
  if (x == tmin) { return (0xcf << 24); }

  sign = tmin & x;

  /*
   * // 把符号位置为0，然后从左往右找到一个1的位置 ERROR!!!
   * // x &= ~tmin; ERROR!!!
   * 这里应该是x取相反数，不是简单的修改符号位
   */
  if (sign >> 31) { x = -x; }
  for (idx = 31; idx >= 0; idx--) {
    if ((x >> idx) & 1) {
      first1 = idx;
      break;
    }
  }
  // 现在已有的是2^(first1)，bias=127，则可以求E
  exp = 127 + first1;
  /*
   * 接下来需要得到尾数
   *
   * 这里考虑的方式是，把frac的23位直接放到低23位上，这是最终目标；
   * 方法是，首先把找到的first1左移到最高位，隐含的1在最高位，然后再右移8位，此时1在第24位（1-based）；
   * 那么就可以用掩码0x7fffff取出低23位。
   * 但是考虑到如果原来的frac长于23位，会涉及到进位的问题，
   * 那就把x要右移出去的8位提取出来，如果大于0x80，或者恰好是0x80且已经取出来的23位的frac的最低位是1，都需要向偶数舍入；
   * 这里舍入可能进位，导致frac的第24位变成1，如果这样，重新用掩码取出来frac，并把exp加1；
   * (事实上，这里只有当frac的23位全为1时才会进位导致24位变为1)
   * 原因是相当于frac又右移了一位，除以2，需要exp+1来弥补
   */
  x <<= (31 - first1);
  frac_mask = 0x7fffff;
  frac = (x >> 8) & frac_mask;

  out = x & 0xff;
  if (out > 0x80 || (out == 0x80 && frac & 1)) { frac += 1; }

  if (frac >> 23) {
    frac = frac & frac_mask;
    exp++;
  }

  return sign | (exp << 23) | frac;
}

/*
 * float64_f2i - Return bit-level equivalent of expression (int) f
 *   for 64 bit floating point argument f.
 *   Argument is passed as two unsigned int, but
 *   it is to be interpreted as the bit-level representation of a
 *   double-precision floating point value.
 *   Notice: uf1 contains the lower part of the f64 f
 *   Anything out of range (including NaN and infinity) should return
 *   0x80000000u.
 *   Legal ops: Any integer/unsigned operations incl. ||, &&. also if, while
 *   Max ops: 20
 *   Rating: 4
 */
int float64_f2i(unsigned uf1, unsigned uf2) {
  // 1 11 52
  int tmin = 1 << 31;
  int sign = uf2 >> 31;

  int exp_mask = 0x7ff;
  int exp = (uf2 >> 20) & exp_mask;
  int E = exp - 1023;
  int deltaE = 31 - E;

  int frac = ((uf2 & 0xfffff) << 11/*留了最高位给隐含的1*/) | ((uf1 >> 21) & 0x7ff) | tmin;

  if (E < 0) return 0;
  if (E >= 31) return tmin;
  frac = frac >> (deltaE/*右移31补偿，再左移E做乘法*/) & ~(tmin >> deltaE << 1/*高位右移的1去掉*/);
  if (sign) frac = -frac;
  return frac;
}

/*
 * float_pwr2 - Return bit-level equivalent of the expression 2.0^x
 *   (2.0 raised to the power x) for any 32-bit integer x.
 *
 *   The unsigned value that is returned should have the identical bit
 *   representation as the single-precision floating-point number 2.0^x.
 *   If the result is too small to be represented as a denorm, return
 *   0. If too large, return +INF.
 *
 *   Legal ops: Any integer/unsigned operations incl. ||, &&. Also if, while
 *   Max ops: 30
 *   Rating: 4
 */
unsigned float_pwr2(int x) {
  /*
   * 单精度，
   * 最小非规格：2^-23 * 2^(1-127) = 2^-149
   * 最大非规格：（1-e）* 2^(1-127) = 2^-126
   * 也即只要x<-149，就是0；-149<=x<-126，就是非规格，直接左移x-149位
   *
   * 最小规格：(1+2^-23) * 2^(1-127) = 2^-126+2^-149
   * 最大规格：(2-e) * 2^(254-127) = (2-e) * 2^127
   * 只要x>=128，就是inf，0x7f800000
   * 我们本身就知道规格化的指数部分的范围，-126 ~ 127
   *
   *
   */
  if (x < -149) {
    return 0;
  } else
  if (x >= -149 && x <= -127) {
    return (1 << (x + 149));
  } else
  if (-126 <= x && x <= 127) {
    return (x + 127) << 23;
  } else
  // if (x >= 128)
  {
    return 0x7f800000;
  }

}
